低 GDD 二向色低通超快濾光片

TECHSPEC® Low GDD Dichroic Shortpass Ultrafast Filters

TECHSPEC® Low GDD Dichroic Shortpass Ultrafast Filters

×
  • 較薄的厚度,適用於極低的GDD
  • 穿透和反射範圍廣
  • 超快雷射應用的理想選擇
  • 使用內部計量技術實施受控的GDD規範

一般規格

Thickness (mm):
1.05 ±0.1
Dimensional Tolerance (mm):
+0.0/-0.2
Angle of Incidence (°):
45
Substrate:
Fused Silica (Corning 7980)
Coating:
Hard Coated
P-Polarization Transmission (%):
>80
Reflection (%):
>97 Average Polarization
S-Polarization Transmission (%):
>80
Surface Quality:
60-40
Transmission (%):
>85 Average Polarization
Transmitted Wavefront, RMS:
λ/4
Slope Factor (%):
3.00
Cut-Off Tolerance (%):
±2
S-Polarization Reflection (%):
>95
P-Polarization Reflection (%):
>95
Coating Specification:
Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated
 Dimensions (mm)  Dia. (mm)  Cut-Off Wavelength (nm)   Transmission Wavelength (nm)   Wavelength Range (nm)   比較   庫存號碼   價格  Buy
- 25.00 450.00 325 - 430 325 - 545 #13-996 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 450.00 325 - 430 325 - 545 #14-008 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 500.00 325 - 480 325 - 610 #13-997 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 500.00 325 - 480 325 - 610 #14-009 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 600.00 400 - 580 400 - 795 #13-999 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 聯絡我們
    ×

25.2 x 35.6 - 600.00 400 - 580 400 - 795 #14-011 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 650.00 400 - 630 400 - 850 #14-001 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 650.00 400 - 630 400 - 850 #14-012 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 700.00 400 - 680 400 - 900 #14-002 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 聯絡我們
    ×

25.2 x 35.6 - 700.00 400 - 680 400 - 900 #14-013 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 750.00 400 - 725 400 - 990 #14-003 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 750.00 400 - 725 400 - 990 #14-014 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 800.00 400 - 775 400 - 1050 #14-004 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 聯絡我們
    ×

25.2 x 35.6 - 800.00 400 - 775 400 - 1050 #14-015 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 850.00 400 - 820 400 - 1110 #14-005 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 聯絡我們
    ×

25.2 x 35.6 - 850.00 400 - 820 400 - 1110 #14-016 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 900.00 465 - 865 465 - 1170 #14-006 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 聯絡我們
    ×

25.2 x 35.6 - 900.00 465 - 865 465 - 1170 #14-017 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 950.00 495 - 912 495 - 1325 #14-030 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 950.00 495 - 912 495 - 1235 #14-036 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 1,050.00 546 - 1008 546 - 1365 #14-032 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 1,050.00 546 - 1008 546 - 1365 #14-038 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 1,100.00 572 - 1056 572 - 1430 #14-033 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 1,100.00 572 - 1056 572 - 1430 #14-039 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×

- 25.00 1,200.00 624 - 1152 624 - 1560 #14-035 NT$6,580 Qty 6+ NT$5,250   Request Quote
  • 5-7 Days
    ×

25.2 x 35.6 - 1,200.00 624 - 1152 624 - 1560 #14-041 NT$7,280 Qty 6+ NT$5,810   Request Quote
  • 5-7 Days
    ×


TECHSPEC®低GDD二向色低通超快濾光片具有非常薄的基材和極低的組延遲分散(GDD)鍍膜,非常適合與超快雷射光源配合使用。這些光譜濾光片設計用於45°入射角並覆蓋多種波長,可以與TI:藍寶石,nd:摻和的和Yb:摻和的光纖或玻璃雷射以及光學參數振盪器和放大器結合使用。TECHSPEC®低GDD二向色低通超快濾光片是超快雷射應用的理想選擇,包括多光子顯微鏡,非線性螢光和分數激發拉曼光譜。如果您的應用需要具有客製尺寸或波長範圍的超快光學濾光片,請聯繫我們。

請注意:這些濾光片經過優化,可實現高光譜性能,而不是高雷射損壞閾值(LIDT)。這些濾光片的典型LIDT為1J/cm2@532nm,10ns。如果您需要具有較高LIDT值的濾光片, 請聯繫我們。

Filter

瞭解及指定雷射元件的LDT

雷射誘導損傷閾值 (LIDT) 或雷射損傷閾值 (LDT) 對於選擇或指定雷射光學器件至關重要。在愛特蒙特光學了解更多!

現在查看

Basics of Ultrafast Lasers

Master the fundamentals of ultrafast lasers and how to choose optics that can withstand their high powers and short pulse durations.

現在查看

Multiphoton Microscopy

Multiphoton microscopy is ideal for capturing high-resolution 3D images with reduced photobleaching and phototoxicity compared to confocal microscopy.

現在查看

超快高色散反射鏡

Pulse Compression and Dispersion Compensation for Ultrafast Lasers

現在查看

Group Delay Dispersion and White Light Interferometry

Understanding group delay dispersion (GDD) is critical for knowing how ultrafast laser pulses will be stretched or compressed.

現在查看

超快雷射的 LDT

超快雷射的短脈衝持續時間使其與光學元件的相互作用不同,從而影響光學元件的雷射損傷閾值。

現在查看

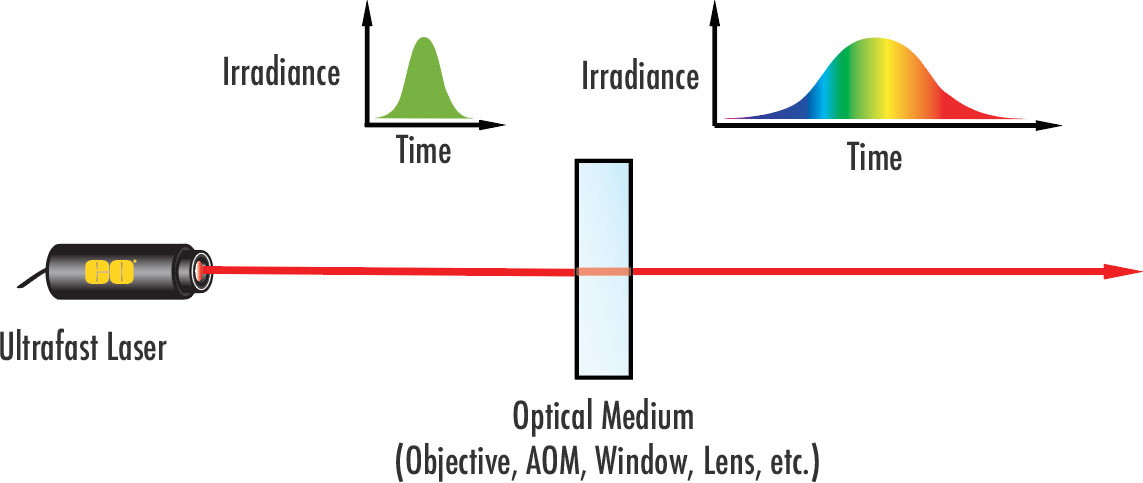

超快色散

超快雷射的短脈衝持續時間導致寬波長頻寬,使得超快系統特別容易受到色散和脈衝展寬的影響。

現在查看

Ultrafast Lasers – The Basic Principles of Ultrafast Coherence

Advances in laser technology have made it possible to produce pulses ranging from a few femtoseconds to tens of attoseconds. Learn more at Edmund Optics.

現在查看

Edmund Optics TPA Ultrafast Autocorrelator by APE (700-1100nm) #11-760

Edmund Optics® manufactures thousands of precision aspheric lenses per month in our asphere manufacturing cell that operates 24 hours a day

現在查看

使用高色散超快反射鏡提供色散補償

請觀看愛特蒙特光學的 TECHSPEC® 高色散超快反射鏡,瞭解本產品如何在超快雷射系統中補償色散並壓縮脈衝期。

現在查看

Edmund Optics - UltraFast Innovations - Partnership 2021

Industry-leading laser optics are more available than ever before through the partnership of UltraFast Innovations and Edmund Optics.

現在查看

Ultrafast Laser Optics from Edmund Optics - PhotonicsNEXT 2021

Learn about Edmund Optics' ultrafast laser optics capabilities in this interview with Tony Karam from the PhotonicsNEXT Summit in January 2021.

現在查看

Combatting thermal lensing in high-power ultrafast laser systems

Ultrafast Mirrors: The importance of high reflectance and dispersion control in ultrafast optics

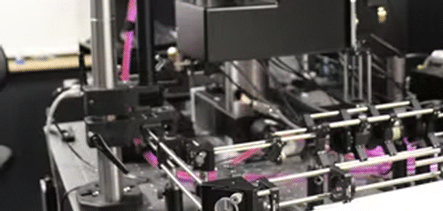

The right stuff: Lasers and optics for ultrafast microscopy
