Advanced Illumination Darkfield LED Illuminators

See More by Advanced Illumination
×
  • Ideal for Visually Enhancing Surface Defects
  • Useful for Front or Back Illumination
  • 5" Versions Have Variable Intensity

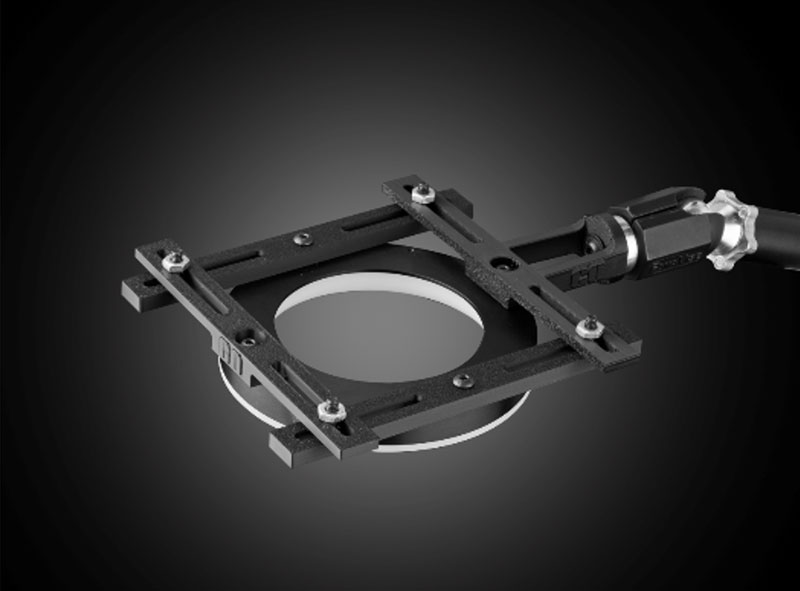

Advanced Illumination Darkfield LED Illuminators are ideal for visually enhancing surface defects. LED intensity can be varied through the in line potentiometer. The 5" darkfield illuminator includes a mounting bracket for easy system integration.

Note: Required 24V power supply #66-855. Accessories for Advanced Illumination products are available and sold separately.

一般規格

LED Lifetime (hours):
50,000
Number of Channels:
1.00
Type of Illumination:
LED Illuminator
Manufacturer:
Advanced Illumination
Geometry:
Ring Light
Maximum Trigger Frequency (Hz):
30.00
Connector:
Flying Leads
Power Supply:
Power Supply Required and Sold Separately:
USA: #66-855
Europe: #66-855
Japan: #66-855
Korea: #33-773
China: #66-855
Operating Temperature (°C):
0 to +65

產品

 Color   Wavelength (nm)   Illumination Mode   Inner Diameter (mm)   Outer Diameter (mm)   比較   庫存號碼   價格  Buy
White - Constant 19.0 55.0
White - Strobed 19.0 55.0
Red 625.00 Constant 19.0 55.0
Red 625.00 Strobed 19.0 55.0
White - Constant 55.0 127.0
White - Strobed 55.0 127.0
Red 625.00 Strobed 55.0 127.0

產品概覽

The strobed models' flash duration is dependent on a trigger signal or potentiometer setting. The duration of the strobe can be adjusted from 30 - 300μs via a knob located in the back of the unit. Trigger input signal is CMOS/TTL compatible. The maximum trigger frequency is 30Hz.

Accessories

Title 比較庫存號碼  價格 Buy
24V Power Supply with Tinned Leads #66-855 NT$3,325   Request Quote
  • 5-7 Days
    ×
3" LED Ring Lights, Replacement Mounting Bracket #56-386 NT$1,470   Request Quote
  • 聯絡我們
    ×
4" and 5" LED Lights, Replacement Mounting Bracket #56-248 NT$1,470   Request Quote
  • 5-7 Days
    ×
