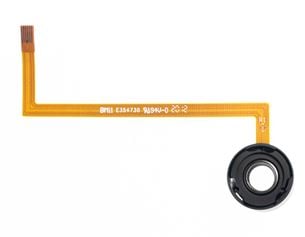

5.8mm CA, NIR Coated, A-58N1-P20 Corning® Varioptic® Variable Focus Liquid Lens, Packaged A-Series - 6 pins FPC with Thermistor

Stock #19-356 Clearance 5-7 Days

- +

NT$8,678

Qty 1+
NT$8,678

Volume Pricing
Request Quote

+ Add to Saved List
Create an account or log in to access saved list

比較

下載產品資料

規格:pdf

EO Spec Sheet

Specifications

General

Type:

Packaged Lens w/ Thermistor

Contents of Kit:

Packaged A-58N1 with a bent flex cable with thermistor FPC-A-20 (6 pins)

Model Number:

A-58N1-P20

Typical Applications:

Optical instruments such as ophthalmology, scientific instrumentation, life sciences and microscopes requiring a larger clear aperture than the A-39N lens operating in the NIR

Physical & Mechanical Properties

Diameter (mm):

15.50

Clear Aperture CA (mm):

5.8

Thickness (mm):

6.30

Optical Properties

Coating:

NIR

Focus Range:

-5 to +10 diopter

Transmission (%):

96 @ 850nm (typical)

Transmitted Wavefront Error, RMS:

80nm

Environmental & Durability Factors

Operating Temperature (°C):

-20 to +50

Storage Temperature (°C):

-40 to +85

Regulatory Compliance

RoHS 2015:

Exempt

Reach 224:

Contains SVHC(s)

Certificate of Conformance:

View

產品概覽

透過外加電壓來變換焦距
機器視覺自動對焦應用的理想選擇
所需電力低於傳統自動對焦鏡頭

Corning® Varioptic® 可變焦液體鏡頭包含兩種密度相同但折射指數不同的液體。兩種液體的球形界面半徑可依電壓進行交換，以實現變焦或自動對焦功能。這類鏡頭專為穩定光軸設計，無論何種方位均能操作，並具有抗反射鍍膜，在400與700nm可達到最優異的穿透率。Corning® Varioptic® 可變焦液體鏡頭是自動變焦應用的理想選擇，不含可動零件，更為迅速、耐用，且所需電力低於傳統自動變焦鏡頭。目前售有適合高速應用的2.5mm孔徑鏡頭，以及適合長焦距、大型傳感器及雷射應用的3.9mm孔徑鏡頭。此外我們還提供開發工具包，其中包括鏡頭，電子驅動設備，電纜和軟件，非常易於使用，通過USB-A進行連接。

注意：這些產品對靜電放電 (ESD) 敏感。應採取處理預防措施以防止意外損壞，例如使用防靜電設備以及在不使用時將產品存放在防靜電容器中。

Technical Information

PRODUCTS WITH UPDATED USER INFORMATION WHEN USED WITH #12-247, #12-248, OR #17-123
Stock No.	Description
#34-283	Packaged A-30N0-P04 Liquid Lens (VIS)
#15-740	Packaged A-30N0-P04 Liquid Lens w/ Thermistor (VIS)
#19-354	Packaged A-30N1-P04 Liquid Lens w/ Thermistor (NIR)
#17-126	A-39N0 Liquid Lens Development Kit (VIS)
#19-358	A-39N1 Liquid Lens Development Kit (NIR)
#37-521	6mm FL, Liquid Lens M12 Lens
#37-522	8mm FL, Liquid Lens M12 Lens
#37-523	12mm FL, Liquid Lens M12 Lens
#37-524	16mm FL, Liquid Lens M12 Lens
#33-676	35mm, f/5, Liquid Lens Cx Series Fixed Focal Length Lens
#33-687	50mm, f/7, Liquid Lens Cx Series Fixed Focal Length Lens
When using a Maxim driver board with a Corning® Varioptic® A39Nx series lens, the jumper at ST2 must be removed to ensure optimal performance and product lifetime. Please contact us for updated user manuals with more information.

Accessories

Note: Compatible accessories for individual stock numbers may vary. If unsure about which accessories work with your products, please contact us here.

Title	庫存號碼	價格	Buy

Corning® Varioptic® - Variable Focus Liquid Lens, Driving Electronics Development Kit	#28-773	25,900 NT$25,900 Request Quote	5-7 Days ×
USB-M Universal PCB with Maxim MAX14574 Driver and USB Input	#28-774	10,535 NT$10,535 Request Quote	聯絡我們 ×
Corning® Varioptic® - 4 to 6/6 to 4 Pin FPC Adapter Board	#22-588	3,535 NT$3,535 Request Quote	5-7 Days ×
Corning® Varioptic® - Variable Focus Liquid Lens, Driver Board with Maxim MAX14574 Driver and I2C/DC Input	#12-248	8,925 NT$8,925 Request Quote	5-7 Days ×

成像鏡頭選擇器

Frequently Purchased Together

資源

Filter

用於成像的液態鏡頭

Quickly Autofocus and Overcome Depth of Field Limitations

現在查看

液態透鏡基礎原理

使用液體鏡頭可以增強成像鏡頭的性能。在愛特蒙特光學了解更多。

現在查看

液態透鏡特性、應用以及技術

液體鏡頭具有許多特點，體積小，可以快速調整焦距以適應位於不同工作距離的物體。在愛特蒙特光學了解更多。

現在查看

Understanding Liquid Lens Technology

Liquid lenses can be used to maximize imaging system flexibility across a wide variety of applications requiring rapid focusing.

現在查看

組裝液態鏡頭 Cx 系列鏡頭

進一步瞭解如何將液態鏡頭插入 TECHSPEC® 液態鏡頭 Cx 系列定焦鏡頭組件。

現在查看

Liquid Lenses in Machine Vision - TRENDING IN OPTICS: EPISODE 1

Liquid Lenses electronically autofocus imaging systems for machine vision by changing shape in response to an applied current or voltage.

現在查看

When to integrate liquid lenses into machine vision optics

現在查看

Can I integrate a liquid lens into another type of lens, such as a fixed focal length lens?

現在查看

How quickly can liquid lenses change between different focus positions?

現在查看

液態鏡片 M12 成像鏡頭

愛特蒙特光學的 TECHSPEC® 液態鏡片 M12 成像鏡頭，將液體鏡頭整合至體積精巧的高分辨率光學設計之中，提供電子式的工作距離調整功能。

現在查看

液態鏡頭 Cx 系列定焦鏡頭

TECHSPEC® Liquid Lens Cx Series Fixed Focal Length Lenses from Edmund Optics offer both high resolution and fast electronic focus.

現在查看

MercuryTL™ Liquid Lens Telecentric Lenses

現在查看

MercuryTL™ 整合液態鏡頭的遠心鏡頭

The TECHSPEC® MercuryTL™ Liquid Lens Telecentric Lenses combine the parallax error correction and high image quality of a telecentric lens with the flexibility of an integrated liquid lens.

現在查看

Optotune Focus-Tunable Lenses Review

Optotune Focus-Tunable lenses feature a liquid polymer substrate with continuous focusability.

現在查看

5.8mm CA, NIR Coated, A-58N1-P20 Corning® Varioptic® Variable Focus Liquid Lens, Packaged A-Series - 6 pins FPC with Thermistor

Protect your investment.

Specifications

General

Physical & Mechanical Properties

Optical Properties

Environmental & Durability Factors

Regulatory Compliance

產品概覽

Technical Information

Accessories

相關產品

成像鏡頭選擇器

Frequently Purchased Together

資源

用於成像的液態鏡頭

液態透鏡基礎原理

液態透鏡特性、應用以及技術

Understanding Liquid Lens Technology

組裝液態鏡頭 Cx 系列鏡頭

Liquid Lenses in Machine Vision - TRENDING IN OPTICS: EPISODE 1

When to integrate liquid lenses into machine vision optics

Can I integrate a liquid lens into another type of lens, such as a fixed focal length lens?

How quickly can liquid lenses change between different focus positions?

液態鏡片 M12 成像鏡頭

液態鏡頭 Cx 系列定焦鏡頭

MercuryTL™ Liquid Lens Telecentric Lenses

MercuryTL™ 整合液態鏡頭的遠心鏡頭

Optotune Focus-Tunable Lenses Review
