高效能反射光柵

See More by Richardson Gratings™

$Richardson Gratings™ High Precision Plane Ruled Reflective Diffraction Gratings$

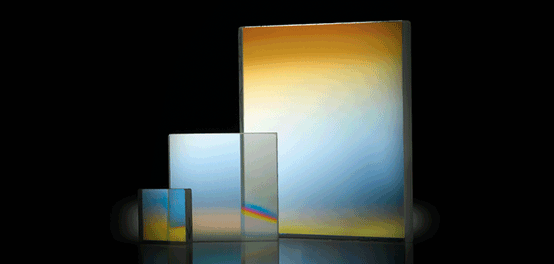

Richardson Gratings™ High Precision Plane Ruled Reflective Diffraction Gratings

$Richardson Gratings™ High Precision Plane Ruled Reflective Diffraction Gratings$ $Richardson Gratings™ High Precision Plane Ruled Reflective Diffraction Gratings$

λ/4 波反射波前
卓越的尺寸容差
溝槽間距容差 <0.05%

高效能反射光柵設計提供一致且可預測的效能。高度重複性可簡化 OEM 系統設計，不需要冗長的校準調整作業。光柵具備 λ/4 反射波前及最高 90%的繞射效率，可因應最嚴苛應用的需求。高效能反射光柵採用裸鋁鍍膜，提供 300 至 1850nm 的各種選項。

注意: 裸鋁鍍膜相當脆弱，必須謹慎處理。

一般規格

Construction:

Ruled Grating

Thickness (mm):

6.00 ±0.5

Groove Spacing Tolerance (%):

<0.05

Coating:

Aluminium

Substrate:

Float Glass

Spectral Order (m):

產品
Technical Information
Accessories
相關產品
資源

產品

Groove Density (grooves/mm)	Wavelength Range (nm)	Blaze Wavelength (nm)	Dimensions (mm)	Master Reference	Spectral Order (m)	庫存號碼	價格	Buy
1200 150 300 400 500 600 75	1000 - 2400 1000 - 5000 175 - 400 200 - 1200 200 - 1600 200 - 900 250 - 1000 350 - 1200 350 - 800 450 - 1400 450 - 1500 500 - 1500 700 - 1000 700 - 1600 7000 - 16000 750 - 2000 800 - 1800	10000 1000 1200 1300 1700 1850 250 3000 300 400 500 560 750 760 900	12.5 x 12.5 12.5 x 25.0 12.7 x 12.7 25.0 x 25.0	0891 0938 0951 0986 0990 1104 1156 1264 1267 1350 1451 1524 1670 2840 2917 3017 MR224	1		4,690 5,425 5,985
75 75	7000 - 16000 7000 - 16000	10000 10000	12.5 x 25.0 12.5 x 25.0	1104 1104	1 1	#15-771	5,425 NT$5,425 Request Quote	5-7 Days ×
75 75	7000 - 16000 7000 - 16000	10000 10000	12.7 x 12.7 12.7 x 12.7	1104 1104	1 1	#15-769	4,690 NT$4,690 Request Quote	5-7 Days ×
75 75	7000 - 16000 7000 - 16000	10000 10000	25.0 x 25.0 25.0 x 25.0	1104 1104	1 1	#15-770	5,985 NT$5,985 Request Quote	5-7 Days ×
150 150	200 - 900 200 - 900	300 300	12.5 x 12.5 12.5 x 12.5	1524 1524	1 1	#37-117	4,690 NT$4,690 Request Quote	5-7 Days ×
150 150	200 - 900 200 - 900	300 300	25.0 x 25.0 25.0 x 25.0	1524 1524	1 1	#37-128	5,985 NT$5,985 Request Quote	5-7 Days ×
300 300	450 - 1400 450 - 1400	760 760	12.5 x 12.5 12.5 x 12.5	1451 1451	1 1	#37-118	4,690 NT$4,690 Request Quote	5-7 Days ×
300 300	1000 - 5000 1000 - 5000	3000 3000	12.5 x 25.0 12.5 x 25.0	1156 1156	1 1	#15-774	5,425 NT$5,425 Request Quote	5-7 Days ×
300 300	1000 - 5000 1000 - 5000	3000 3000	12.7 x 12.7 12.7 x 12.7	1156 1156	1 1	#15-772	4,690 NT$4,690 Request Quote	5-7 Days ×
300 300	750 - 2000 750 - 2000	1200 1200	25.0 x 25.0 25.0 x 25.0	0938 0938	1 1	#37-130	5,985 NT$5,985 Request Quote	5-7 Days ×
300 300	1000 - 5000 1000 - 5000	3000 3000	25.0 x 25.0 25.0 x 25.0	1156 1156	1 1	#15-773	5,985 NT$5,985 Request Quote	5-7 Days ×
300 300	750 - 2000 750 - 2000	1200 1200	12.5 x 12.5 12.5 x 12.5	0938 0938	1 1	#37-119	4,690 NT$4,690 Request Quote	5-7 Days ×
300 300	700 - 1000 700 - 1000	1700 1700	12.5 x 12.5 12.5 x 12.5	0891 0891	1 1	#37-120	4,690 NT$4,690 Request Quote	5-7 Days ×
300 300	450 - 1400 450 - 1400	760 760	25.0 x 25.0 25.0 x 25.0	1451 1451	1 1	#37-129	5,985 NT$5,985 Request Quote	5-7 Days ×
300 300	700 - 1000 700 - 1000	1700 1700	25.0 x 25.0 25.0 x 25.0	0891 0891	1 1	#37-131	5,985 NT$5,985 Request Quote	5-7 Days ×
400 400	800 - 1800 800 - 1800	1300 1300	12.5 x 12.5 12.5 x 12.5	0986 0986	1 1	#37-121	4,690 NT$4,690 Request Quote	5-7 Days ×
400 400	800 - 1800 800 - 1800	1300 1300	25.0 x 25.0 25.0 x 25.0	0986 0986	1 1	#37-132	5,985 NT$5,985 Request Quote	5-7 Days ×
500 500	350 - 1200 350 - 1200	560 560	12.5 x 12.5 12.5 x 12.5	1350 1350	1 1	#37-122	4,690 NT$4,690 Request Quote	5-7 Days ×
500 500	350 - 1200 350 - 1200	560 560	25.0 x 25.0 25.0 x 25.0	1350 1350	1 1	#37-133	5,985 NT$5,985 Request Quote	5-7 Days ×
600 600	1000 - 2400 1000 - 2400	1850 1850	12.5 x 12.5 12.5 x 12.5	0951 0951	1 1	#37-123	4,690 NT$4,690 Request Quote	5-7 Days ×
600 600	350 - 800 350 - 800	500 500	12.5 x 25.0 12.5 x 25.0	1670 1670	1 1	#15-765	5,425 NT$5,425 Request Quote	5-7 Days ×
600 600	350 - 800 350 - 800	500 500	12.7 x 12.7 12.7 x 12.7	1267 1267	1 1	#15-763	4,690 NT$4,690 Request Quote	5-7 Days ×
600 600	350 - 800 350 - 800	500 500	25.0 x 25.0 25.0 x 25.0	1267 1267	1 1	#15-764	5,985 NT$5,985 Request Quote	5-7 Days ×
600 600	1000 - 2400 1000 - 2400	1850 1850	25.0 x 25.0 25.0 x 25.0	0951 0951	1 1	#37-134	5,985 NT$5,985 Request Quote	5-7 Days ×
1200 1200	250 - 1000 250 - 1000	300 300	12.5 x 12.5 12.5 x 12.5	0990 0990	1 1	#37-124	4,690 NT$4,690 Request Quote	5-7 Days ×
1200 1200	200 - 1600 200 - 1600	400 400	12.5 x 12.5 12.5 x 12.5	1264 1264	1 1	#37-125	4,690 NT$4,690 Request Quote	5-7 Days ×
1200 1200	450 - 1500 450 - 1500	750 750	12.5 x 12.5 12.5 x 12.5	2917 2917	1 1	#37-126	4,690 NT$4,690 Request Quote	5-7 Days ×
1200 1200	500 - 1500 500 - 1500	900 900	12.5 x 12.5 12.5 x 12.5	MR224 MR224	1 1	#37-127	4,690 NT$4,690 Request Quote	5-7 Days ×
1200 1200	175 - 400 175 - 400	250 250	12.7 x 12.7 12.7 x 12.7	2840 2840	1 1	#15-760	4,690 NT$4,690 Request Quote	5-7 Days ×
600 600	700 - 1600 700 - 1600	1000 1000	12.7 x 12.7 12.7 x 12.7	3017 3017	1 1	#15-766	4,690 NT$4,690 Request Quote	5-7 Days ×
1200 1200	175 - 400 175 - 400	250 250	12.5 x 25.0 12.5 x 25.0	2840 2840	1 1	#15-762	5,425 NT$5,425 Request Quote	5-7 Days ×
600 600	700 - 1600 700 - 1600	1000 1000	12.5 x 25.0 12.5 x 25.0	3017 3017	1 1	#15-768	5,425 NT$5,425 Request Quote	5-7 Days ×
1200 1200	175 - 400 175 - 400	250 250	25.0 x 25.0 25.0 x 25.0	2840 2840	1 1	#15-761	5,985 NT$5,985 Request Quote	5-7 Days ×
1200 1200	200 - 1200 200 - 1200	300 300	25.0 x 25.0 25.0 x 25.0	0990 0990	1 1	#37-135	5,985 NT$5,985 Request Quote	5-7 Days ×
1200 1200	200 - 1600 200 - 1600	400 400	25.0 x 25.0 25.0 x 25.0	1264 1264	1 1	#37-136	5,985 NT$5,985 Request Quote	5-7 Days ×
1200 1200	450 - 1500 450 - 1500	750 750	25.0 x 25.0 25.0 x 25.0	2917 2917	1 1	#37-137	5,985 NT$5,985 Request Quote	5-7 Days ×
1200 1200	500 - 1500 500 - 1500	900 900	25.0 x 25.0 25.0 x 25.0	MR224 MR224	1 1	#37-138	5,985 NT$5,985 Request Quote	5-7 Days ×
600 600	700 - 1600 700 - 1600	1000 1000	25.0 x 25.0 25.0 x 25.0	3017 3017	1 1	#15-767	5,985 NT$5,985 Request Quote	5-7 Days ×
