系列ID 系列ID用於識別產品系列介紹，使得用戶利用搜索功能就能快速訪問介紹頁面。 #3784

TECHSPEC^®組件由愛特蒙特光學設計、指定或製造。進一步瞭解

緊湊型動態調整座

12.5/12.7mm Diameter Compact Kinematic Mount, 2-Screws, #34-720

M3 x 0.2 微調螺釘螺紋
整體輪廓 < 25mm
可鎖定以提供較佳的穩定性

我們的 TECHSPEC® 緊湊型動態調整座，其設計讓調整座整合至空間敏感應用時，仍可維持較大型動態調整座的效能。這些動態調整座具備可完全後退的調整螺釘，以便整合至 OEM 應用。TECHSPEC® 緊湊型動態調整座擁有兩款面板型號，分別可使用於固定螺釘或接合式光學固定。使用不鏽鋼嵌件則可確保品質及穩定性。這些動態調整座若搭配我們的 TECHSPEC® 雷射光反射鏡使用，則適用於可靠地整合至雷射加工、電影或生命科學等應用。

一般規格

Plate Dimensions (mm):

22.5 x 22.5

Thickness (mm):

19.60

Construction:

Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings

Fine Tilt Angle (°):

±5

Fine Tip Angle (°):

±5

Adjustment Screw Pitch (mm):

0.2

Centerline Height (mm):

15.0

Thickness of Front Plate to Back Plate (mm):

19.6

Pointing Stability (μrad):

1.3

Compatible Post:

M4 x 0.7

產品

12.5/12.7mm Optic Dia., Compact Kinematic Mount, 2-Screws

Stock #34-720

12.5/12.7mm Optic Dia., Compact Kinematic Mount, 3-Screws

Stock #34-721

Compact Kinematic Solid Plate Mount, 2-Screws

Stock #34-722

Compact Kinematic Solid Plate Mount, 3-Screws

Stock #34-723

Accessories

資源

Filter

A Closer Look at Kinematic Movement

A Kinematic mount is classified by all degrees of freedom being fully constrained. Need a mount? Browse through the different variations at Edmund Optics.

現在查看

E 系列動態光學反射鏡調整組件

E 系列運動光學安裝座為實驗室使用、原型設計和系統整合等應用提供高價值和基本功能

現在查看

TECHSPEC® 90° Kinematic Adapter

Edmund Optics presents a demonstration of the TECHSPEC® 90° Kinematic Adapter (#34-248).

現在查看

Important Concepts for Selecting Optical Component Mounts

Edmund Optics offers a variety of kinematic, bar-type, translating, ring, and modular mounting components.

現在查看

How do truncated optics eliminate the need for kinematic mounts?

現在查看

Gimbal

現在查看

Optomechanical Thread Adapters

Thread adapters are used when connecting two components of different thread types. Learn more at Edmund Optics.

現在查看

Large Diameter Gimbal Optical Mounts

Large Diameter Gimbal Optical Mounts available from Edmund Optics are used to integrate large precision optical components, such as mirrors, into OEM and benchtop systems.

現在查看

Interchangeable Optical Mount and Side Access Mounting Plate

This is a quick video demonstration of integrating an optical cage system interchangeable optical mount and side access mounting plate using #85-717 and #85-641.

現在查看

How do I mount a mirror to a mirror mount that doesn't have a clamp or retainer ring?

現在查看

I’m using an English breadboard but will be switching to Metric soon, is there a way to adapt your TECHSPEC® Kinematic Mounts to both standards of posts and breadboard accessories?

現在查看

Could you tell me what the inner diameter of a ring mount mean? Does it mean the smallest diameter of the cylindrical components I can mount, or the biggest diameter?

現在查看

Bolt Circle (BC)

現在查看

快速建立光學產品原型

Quickly Respond to Collapsing Product Lifecycles

現在查看

Now that I have chosen my lens, how do I mount it?

現在查看

Do you have mounts for square or rectangular optics?

現在查看

What is the difference between pitch, roll, and yaw?

現在查看

Bezel

現在查看

Épaisseur de bord

現在查看

Moment Load

現在查看

Normal Load Capacity

現在查看

Roll

現在查看

Yaw

現在查看

C-Mount

現在查看

Do you have a simple prototyping assembly for an imaging system?

現在查看

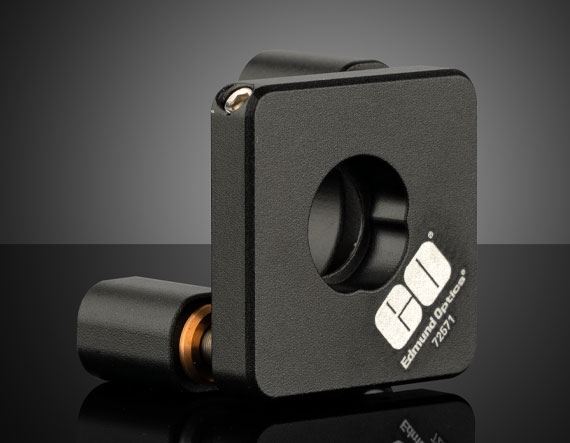

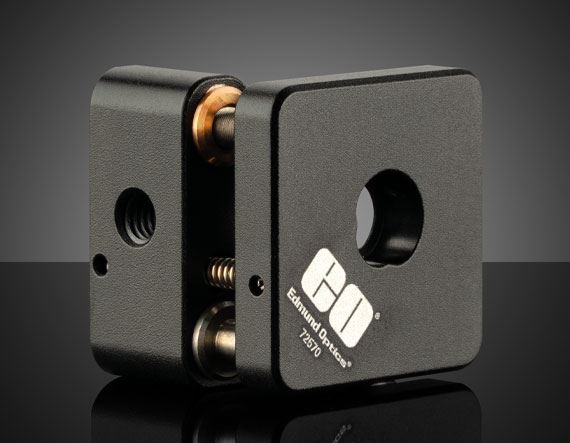

緊湊型動態調整座

一般規格

產品

Accessories

相關產品

資源

A Closer Look at Kinematic Movement

E 系列動態光學反射鏡調整組件

TECHSPEC® 90° Kinematic Adapter

Important Concepts for Selecting Optical Component Mounts

How do truncated optics eliminate the need for kinematic mounts?

Gimbal

Optomechanical Thread Adapters

Large Diameter Gimbal Optical Mounts

Interchangeable Optical Mount and Side Access Mounting Plate

How do I mount a mirror to a mirror mount that doesn't have a clamp or retainer ring?

I’m using an English breadboard but will be switching to Metric soon, is there a way to adapt your TECHSPEC&reg; Kinematic Mounts to both standards of posts and breadboard accessories?

Could you tell me what the inner diameter of a ring mount mean? Does it mean the smallest diameter of the cylindrical components I can mount, or the biggest diameter?

Bolt Circle (BC)

快速建立光學產品原型

Now that I have chosen my lens, how do I mount it?

Do you have mounts for square or rectangular optics?

What is the difference between pitch, roll, and yaw?

Bezel

Épaisseur de bord

Moment Load

Normal Load Capacity

Roll

Yaw

C-Mount

Do you have a simple prototyping assembly for an imaging system?

I’m using an English breadboard but will be switching to Metric soon, is there a way to adapt your TECHSPEC® Kinematic Mounts to both standards of posts and breadboard accessories?
